Attic Lift 20.75" X 44" & 28.75" X 56" 400LBS Automatic Lift With Easy-Use Remote Control For Storage Organization

Attic Lift 20.75" X 44" & 28.75" X 56" 400LBS Automatic Lift With Easy-Use Remote Control For Storage Organization

by Auxx Lift
$2,330.00
Dimensions

Notify me when back in stock

It's the best value on the market! - Load up to 400 LBS! Easily store items in your attic at the push of a button. Our motorized lifting platform maximizes the storage potential of your entire house.

  • Built in the USA 🦅
  • EASY INSTALL! Includes hardware for a sealing cover
  • Remote control included
  • Steel aircraft cables (Lift tested to UL standards)
  • No obstructing posts/rails in the attic like conventional attic lifts
  • NEW: Includes frame to seal the ceiling - Fully adjustable to accommodate all joist sizes from 2×4 to 2×16 or TJIs.
  • Platform size: 20.75 in x 44 in
  • Ceiling Cutout Size: 22.5 in x 46.5 in



Heavy Duty Storage Solution
Features & Benefits

Decking
The Attic-Lift is sheathed with a beautiful 3/4 in thick Oak veneered plywood sheet (5-ply).

No heavy lifting
Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Our DIY attic lift system lets your bulkiest items vanish from your garage floor and be safely stored in your attic.

Wireless Remote-Control
This attic hoist is equipped with an easy-to-use remote control that allows you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters that prevent your items from hitting the floor.

Safety
The robust attic lift system comes with a wide variety of safety features:

  • Self-leveling platform: The controller monitors and adjusts cable speeds to keep the platform level.
  • Stop Limit: The Attic-Lift monitors the weight on the lift, preventing you from overloading it.

Custom Platform Sizes
In addition to our two standard sizes, 20.75" x 44" and 28.75" x 56", we offer custom platform sizes upon request.



Platform Frame

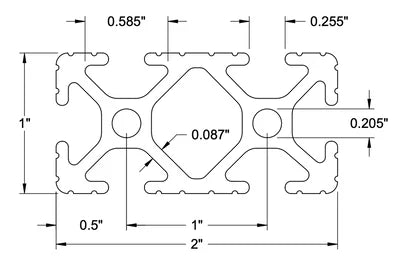

The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides use 2 x 1 solid double T-slots, and the short sides use 1 x 1 solid T-slotted beams.

Material: 6105-T5 Aluminum
Finish: Anodized Silver
Tensile Strength: 35,000 psi

             Double Solid T-slot Beam





Powerful motors


To ensure the platform stays level, the Attic-Lift uses two tubular motors synced via the control unit. Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

Motors
The Attic-Lift runs on a typical 100- 120V AC household, drawing 2.3 amps.

Aircraft Cables
Four hot-dipped galvanized 7x19 steel cables, each made from 133 wires, hoist the attic storage system. The cables are wrapped in a vinyl coating that not only protects your hands but also seals in any lubrication, increasing their useful life.

Vertical Travel Distance
We offer three versions of this attic elevator, allowing for 13ft, 16ft, and 18ft vertical travel distances, respectively.



Description

It's the best value on the market! - Load up to 400 LBS! Easily store items in your attic at the push of a button. Our motorized lifting platform maximizes the storage potential of your entire house.

  • Built in the USA 🦅
  • EASY INSTALL! Includes hardware for a sealing cover
  • Remote control included
  • Steel aircraft cables (Lift tested to UL standards)
  • No obstructing posts/rails in the attic like conventional attic lifts
  • NEW: Includes frame to seal the ceiling - Fully adjustable to accommodate all joist sizes from 2×4 to 2×16 or TJIs.
  • Platform size: 20.75 in x 44 in
  • Ceiling Cutout Size: 22.5 in x 46.5 in



Heavy Duty Storage Solution
Features & Benefits

Decking
The Attic-Lift is sheathed with a beautiful 3/4 in thick Oak veneered plywood sheet (5-ply).

No heavy lifting
Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Our DIY attic lift system lets your bulkiest items vanish from your garage floor and be safely stored in your attic.

Wireless Remote-Control
This attic hoist is equipped with an easy-to-use remote control that allows you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters that prevent your items from hitting the floor.

Safety
The robust attic lift system comes with a wide variety of safety features:

  • Self-leveling platform: The controller monitors and adjusts cable speeds to keep the platform level.
  • Stop Limit: The Attic-Lift monitors the weight on the lift, preventing you from overloading it.

Custom Platform Sizes
In addition to our two standard sizes, 20.75" x 44" and 28.75" x 56", we offer custom platform sizes upon request.



Platform Frame

The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides use 2 x 1 solid double T-slots, and the short sides use 1 x 1 solid T-slotted beams.

Material: 6105-T5 Aluminum
Finish: Anodized Silver
Tensile Strength: 35,000 psi

             Double Solid T-slot Beam





Powerful motors


To ensure the platform stays level, the Attic-Lift uses two tubular motors synced via the control unit. Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

Motors
The Attic-Lift runs on a typical 100- 120V AC household, drawing 2.3 amps.

Aircraft Cables
Four hot-dipped galvanized 7x19 steel cables, each made from 133 wires, hoist the attic storage system. The cables are wrapped in a vinyl coating that not only protects your hands but also seals in any lubrication, increasing their useful life.

Vertical Travel Distance
We offer three versions of this attic elevator, allowing for 13ft, 16ft, and 18ft vertical travel distances, respectively.
