Auxx Lift 20.75" X 44" & 28.75 X 56 400LBS Attic Automatic Easy-Use Lift With Remote Control For Best Organization Storage

Auxx Lift 20.75" X 44" & 28.75 X 56 400LBS Attic Automatic Easy-Use Lift With Remote Control For Best Organization Storage

by Auxx Lift
$2,240.00
Dimensions

Notify me when back in stock

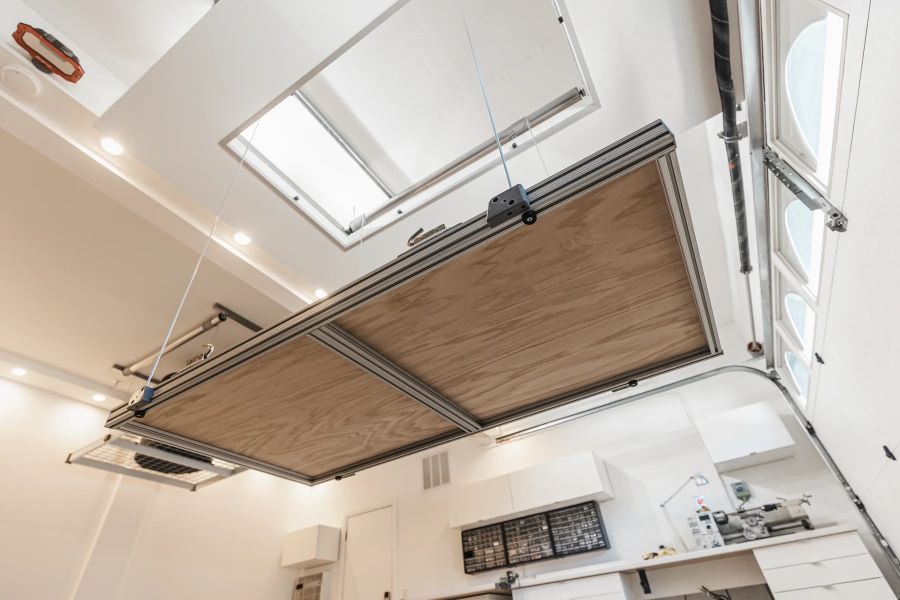

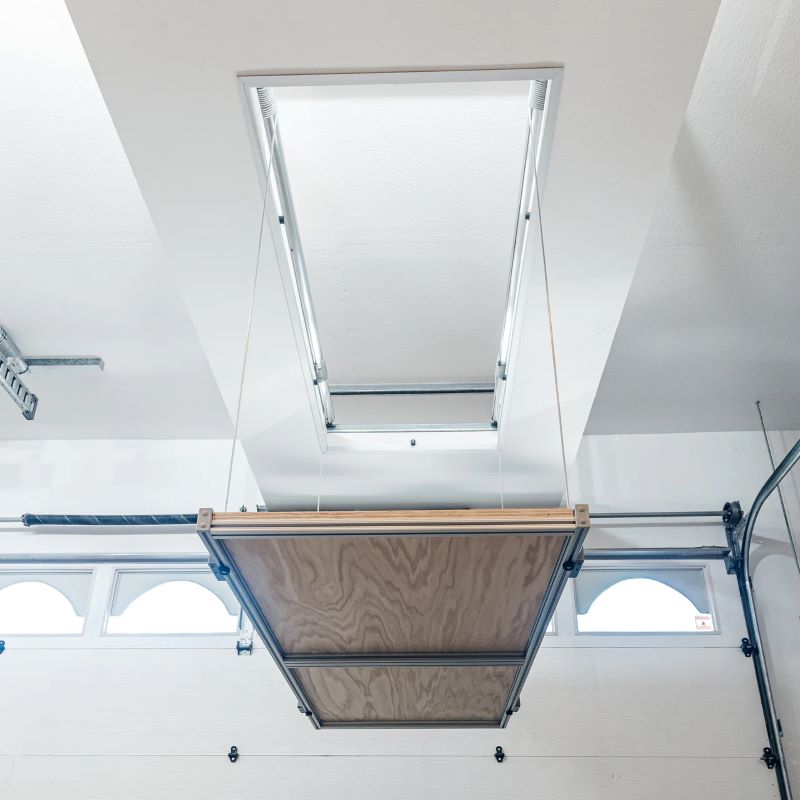

Our motorized lifting platform maximizes the storage potential of your entire house. Say goodbye to pricey storage units and say hello to a clutter-free home with items safely stored away in the attic. The Attic-Lift comes in various sizes, colors, and lifting capacities, allowing you to modify your overhead storage to fit your needs.

  • Built in the USA 🦅
  • EASY INSTALL! Only attach two motors and two struts on the attic floor
  • Remote Controlled
  • No lifting or ladders
  • Steel aircraft cables (Lift tested to UL-standards)
  • No obstructing posts/rails in the attic like conventional attic lifts

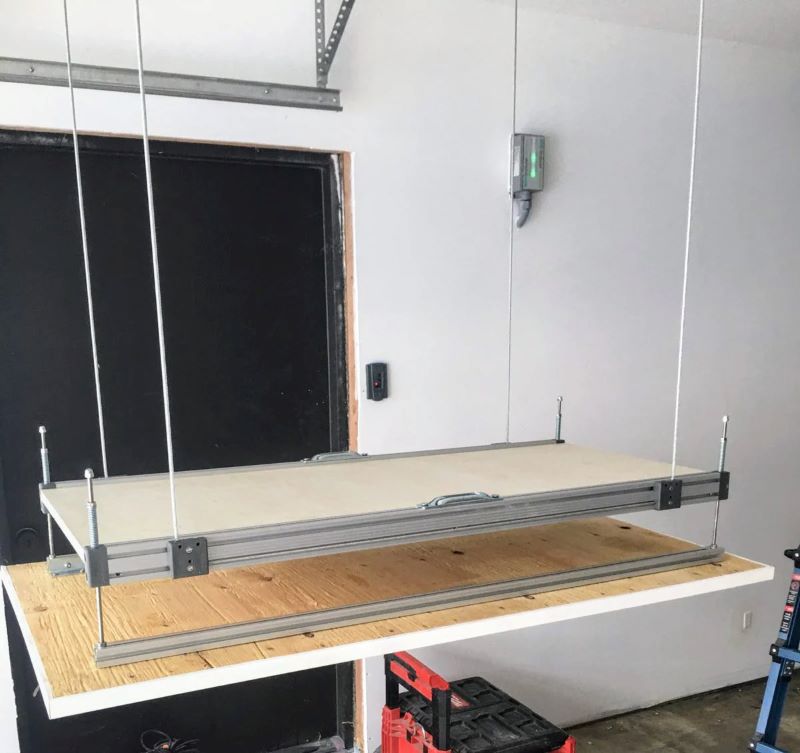

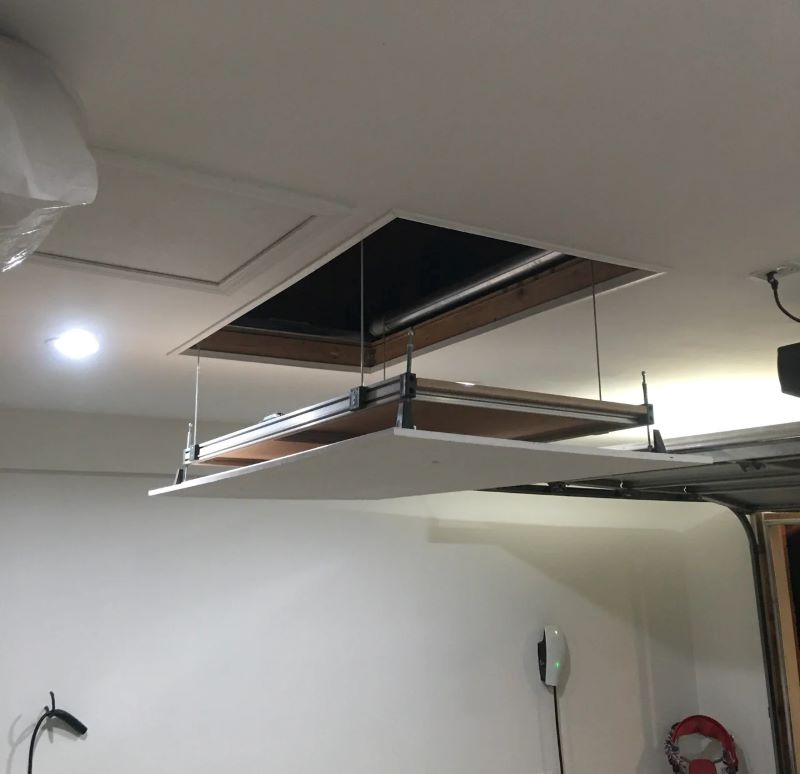

  • NEW: Includes frame to seal the ceiling - Fully adjustable to accommodate all joist sizes from 2×4 To 2×16 or TJIs.
  • Platform size: 28.75" x 56" (OPENING: 30.5" x 58.5")



Heavy Duty Storage Solution
Features & Benefits

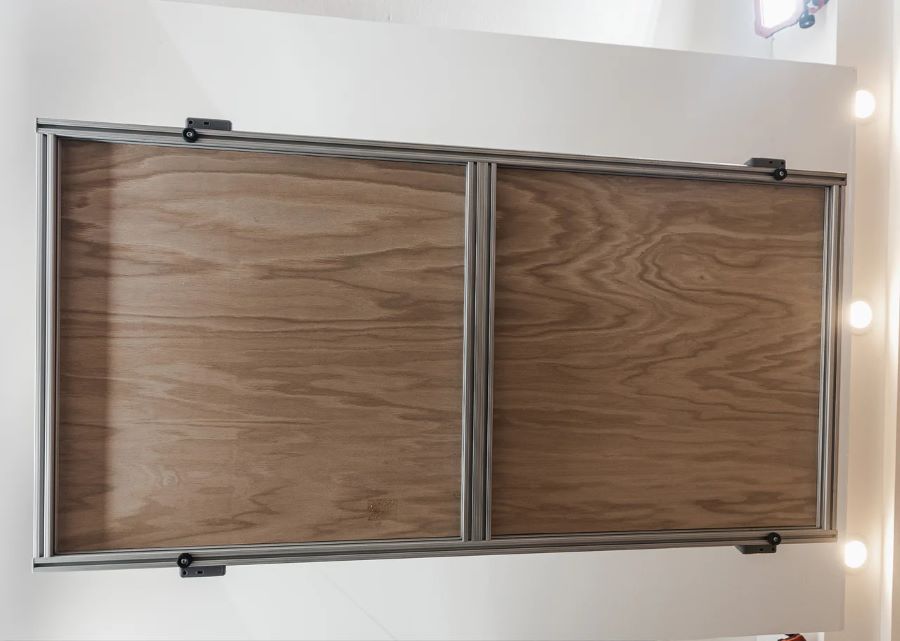

Decking
The Attic-Lift is sheathed with a beautiful 3/4 in thick Oak veneered plywood sheet (5-ply).

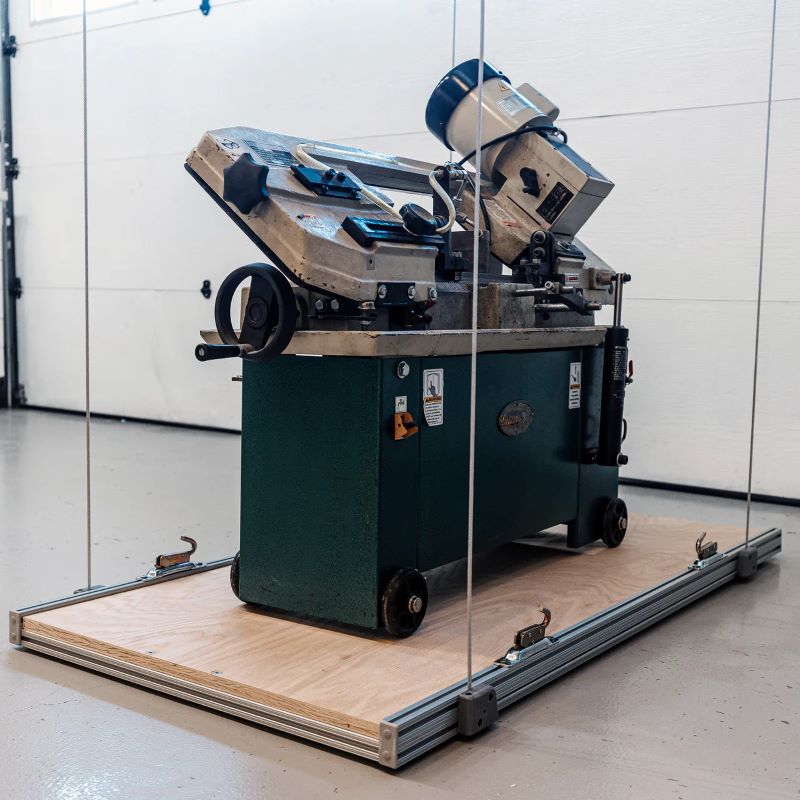

No heavy lifting
Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Your bulkiest items can vanish from your garage floor and be safely stored in your attic with our DIY attic lift system.

Wireless Remote-Control
This attic hoist is equipped with an easy-to-use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items from hitting the floor.

Safety
The robust attic lift system comes with a wide variety of safety features:

  • Self-leveling platform: The controller monitors and adjusts cable speeds to keep the platform level.
  • Stop Limit: The Attic-Lift monitors the weight on the lift preventing you from overloading it.

Custom Platform Sizes
Besides our two standard sizes of 20.75" x 44" and 28.75" x 56", we offer custom platform sizes per your request.

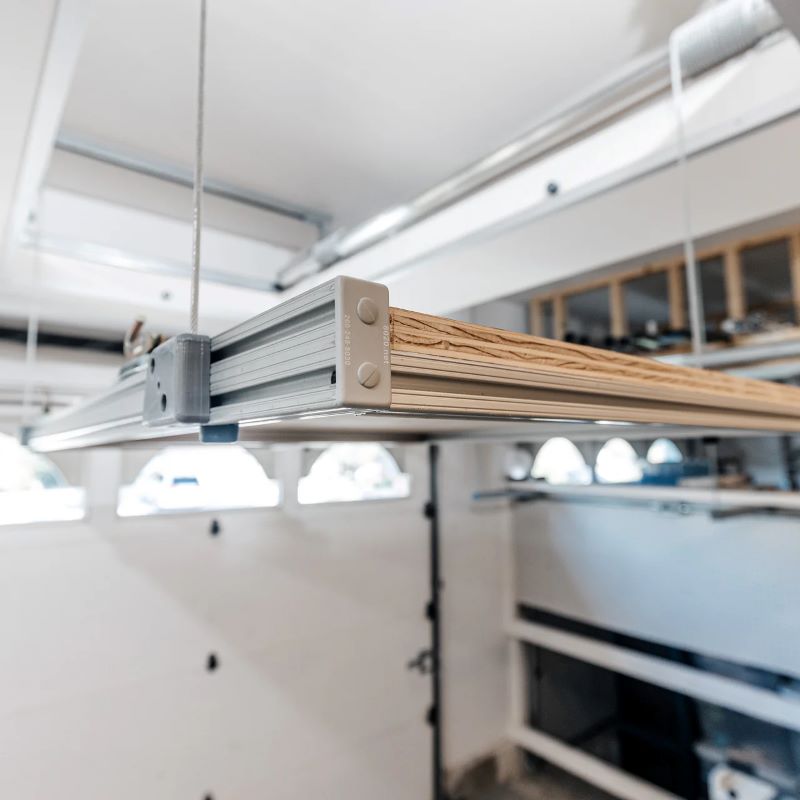

Platform Frame

The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides are made with 2 x 1 solid double T-slot and the short sides use 1 x 1 solid T-slotted beams.

Material: 6105-T5 Aluminum
Finish: Anodized Silver
Tensile Strength: 35,000 psi

             Double Solid T-slot Beam

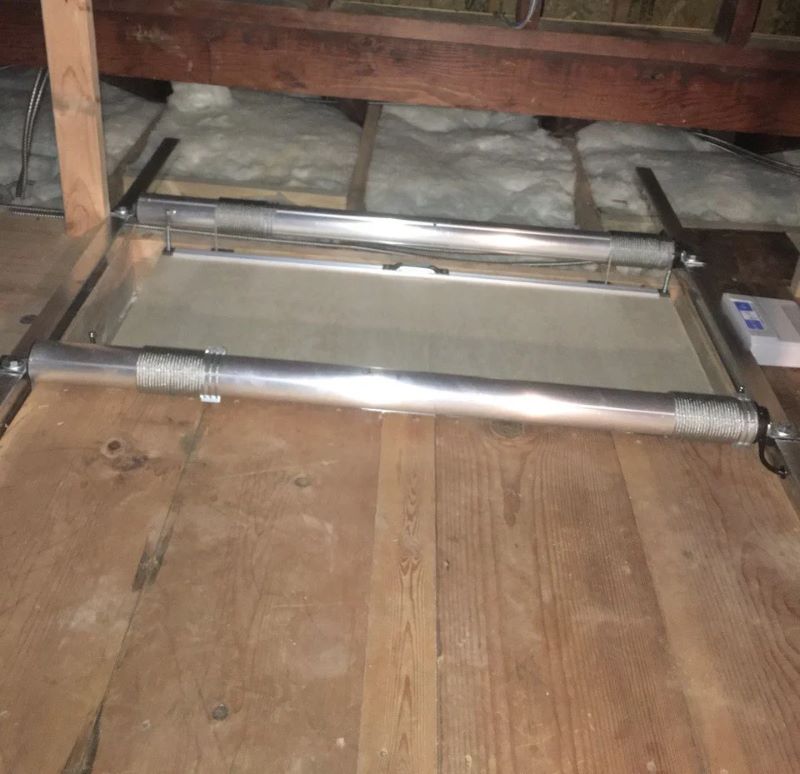

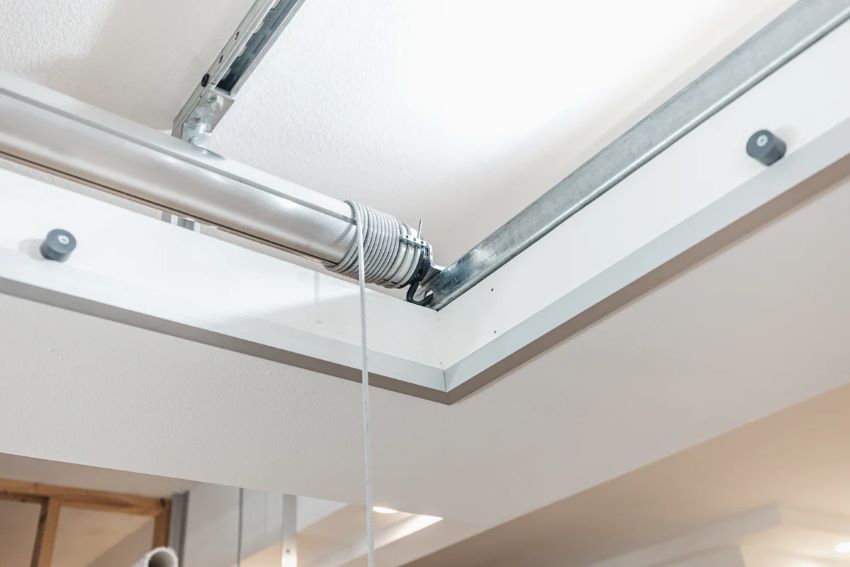

Powerful motors


The Attic-Lift uses two tubular motors that are synced via the control unit to ensure the platform stays level. Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

Motors
The Attic-Lift runs on typical household 100-120V AC, drawing 2.3 amps.

Aircraft Cables
The attic storage system is hoisted by four hot-dipped galvanized 7x19 steel cables made from 133 wires each. The cables are wrapped in a vinyl coating that not only protects your hands but also seals in any lubrication, increasing its useful life.

Vertical Travel Distance
We offer three versions of this attic elevator, allowing for 13ft, 16ft, and 18ft vertical travel distances, respectively.



Our motorized lifting platform maximizes the storage potential of your entire house. Say goodbye to pricey storage units and say hello to a clutter-free home with items safely stored away in the attic. The Attic-Lift comes in various sizes, colors, and lifting capacities, allowing you to modify your overhead storage to fit your needs.

  • Built in the USA 🦅
  • EASY INSTALL! Only attach two motors and two struts on the attic floor
  • Remote Controlled
  • No lifting or ladders
  • Steel aircraft cables (Lift tested to UL-standards)
  • No obstructing posts/rails in the attic like conventional attic lifts
  • NEW: Includes frame to seal the ceiling - Fully adjustable to accommodate all joist sizes from 2×4 To 2×16 or TJIs.
  • Platform size: 28.75" x 56" (OPENING: 30.5" x 58.5")



Heavy Duty Storage Solution
Features & Benefits

Decking
The Attic-Lift is sheathed with a beautiful 3/4 in thick Oak veneered plywood sheet (5-ply).

No heavy lifting
Eliminate the safety hazard of carrying heavy items up and down the pull-down stairways. Your bulkiest items can vanish from your garage floor and be safely stored in your attic with our DIY attic lift system.

Wireless Remote-Control
This attic hoist is equipped with an easy-to-use remote control allowing you to lower/raise your items. Programmable stopping points allow you to set high and low point parameters preventing your items from hitting the floor.

Safety
The robust attic lift system comes with a wide variety of safety features:

  • Self-leveling platform: The controller monitors and adjusts cable speeds to keep the platform level.
  • Stop Limit: The Attic-Lift monitors the weight on the lift preventing you from overloading it.

Custom Platform Sizes
Besides our two standard sizes of 20.75" x 44" and 28.75" x 56", we offer custom platform sizes per your request.



Platform Frame

The platform frame is constructed with a versatile T-slotted framing rail made from 6105-T5 aluminum alloy. The long sides are made with 2 x 1 solid double T-slot and the short sides use 1 x 1 solid T-slotted beams.

Material: 6105-T5 Aluminum
Finish: Anodized Silver
Tensile Strength: 35,000 psi

             Double Solid T-slot Beam





Powerful motors


The Attic-Lift uses two tubular motors that are synced via the control unit to ensure the platform stays level. Both motors are mounted on steel strut channels which are anchors via lag screws on your attic's floor joists/rafters.

Motors
The Attic-Lift runs on typical household 100-120V AC, drawing 2.3 amps.

Aircraft Cables
The attic storage system is hoisted by four hot-dipped galvanized 7x19 steel cables made from 133 wires each. The cables are wrapped in a vinyl coating that not only protects your hands but also seals in any lubrication, increasing its useful life.

Vertical Travel Distance
We offer three versions of this attic elevator, allowing for 13ft, 16ft, and 18ft vertical travel distances, respectively.
